Zirconia
(YSZ) Grinding Media
(Balls
& Cylinders)
An Efficient, Longer-Lasting
& Virtually Contamination-Free Solution for Ceramic Grinding & Milling
Zirconia (YSZ) grinding
media is the most durable and efficient media for ball milling and attrition
milling of ceramic materials. Zirconia grinding media provides a virtually
contamination-free ball milling solution for a variety of industries.
Products & Pricing
Spherical Zirconia (YsZ) Grinding Media |
Product
# |
Media
Diameter |
Quantity
and Price |
4039GM-S0015 |
0.1-0.2 mm |
|
4039GM-S0025 |
0.2-0.3 mm |
|
4039GM-S003 |
0.3 mm |
|
4039GM-S005 |
0.5 mm |
|
4039GM-S008 |
0.8 mm |
|
4039GM-S010 |
1 mm |
|
4039GM-S015 |
1.5 mm |
|
4039GM-S020 |
2 mm |
|
4039GM-S030 |
3 mm (1/8”) |
|
4039GM-S040 |
4mm |
|
4039GM-S050 |
5 mm |
|
4039GM-S065 |
6.5 mm (1/4”) |
|
4039GM-S070 |
7 mm |
|
4039GM-S080 |
8 mm |
|
4039GM-S100 |
10 mm (3/8”) |
|
4039GM-S120 |
12 mm (1/2”) |
|
4039GM-S150 |
15 mm (5/8”) |
|
4039GM-S200 |
20 mm (3/4”) |
|
4039GM-S250 |
25 mm (1’’) |
|
4039GM-S300 |
30 mm |
|
4039GM-S500 |
50 mm |
|
| |
Cylindrical Zirconia (YSZ) Grinding media |
Product
# |
Media
Dimension |
Quantity
and Price |
4039GM-C05 |
5 mm in diameter
5 mm in height |
|
4039GM-C07 |
7.5 mm in diameter
7.5 mm in height |
|
4039GM-C10 |
10 mm in diameter
10 mm in height
(3/8”) |
|
4039GM-C12 |
12 mm in diameter
12 mm in height
(1/2”) |
|
4039GM-C15 |
15 mm in diameter
15 mm in height
(5/8”) |
|
4039GM-C20 |
20 mm in diameter
20 mm in height
(3/4”) |
|
Typical Properties
Composition |
3
mol% yttria (Y2O3) stabilized zirconia (ZrO2)
(94.7 wt% ZrO2 + 5.3 wt% Y2O3) |
Material
Density |
6.0-6.05 g/cm3 |
Bulk
Volume |
0.5-1.5
mm media |
3.7-3.8 kg/1000 cc |
1.5-3.0
mm media |
3.6 kg/1000 cc |
3.0-8.0
mm media |
3.5 kg/1000 cc |
8.0-10
mm media |
3.4 kg/1000 cc |
10-25
mm media |
3.2-3.3 kg/1000 cc |
Hardness |
11 GPa |
Crushing
Load |
5
mm media |
10 KN |
6.5
mm media |
15 KN |
Fracture
Toughness |
8-15 MPa m1/2 |
Grain
Size |
<0.5 µm |
Advantages of Zirconia Grinding Media
· Ultra low wear loss as a result of the transformation-toughening
mechanism unique to the yttria stabilized zirconia (YSZ) material system.
· Higher grinding efficiency and reduced grinding time due to
zirconia’s higher density (compared with alumina and glass).

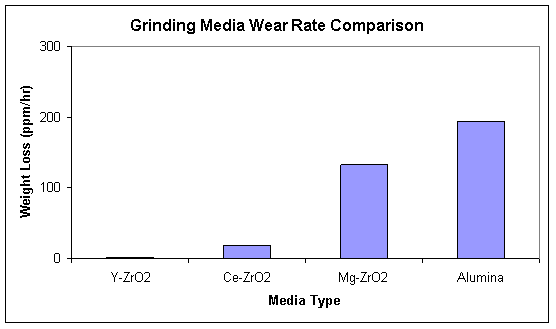

· Most durable grinding material, reducing operational cost in
the long run. Wear rate substantially lower than Al2O3,
CeO2-ZrO2, and MgO-ZrO2 grinding media.
· Suitable for high velocity operations and wet grinding operations.
Applications of Zirconia Grinding Media
· Iron- and chrome-based magnetic materials
(for audio/video recording tapes) and other magnetic materials.
· Electronic-grade ceramics (ferroelectric, piezoelectric, dielectric,
capacitors, sensors, etc.), advanced structural ceramics, and other ceramic
ingredients.
· Nanostructured and superfine powders.
· Toner materials for photocopiers and laser printers.
· Inks, dyes, paint, and other pigments.
· Pharmaceutical, food, chemical, and textile applications.
· Lab milling operations demanding minimized contamination from
milling media.
Criteria in Selecting
Size of Zirconia Grinding Media
· Larger-sized media are more efficient
in breaking up large particles.
· Smaller media are more efficient in milling smaller particles
because of higher effective contact area.
· Larger media sizes are favored in many conventional ball mills.
Smaller sizes are more appropriate for attritors. For example, 5mm media
are used in many attrition mill applications, whereas 10-15 mm may be a good
start for a lab ball mill. For small-media mills, media sizes are typically
smaller than 2 mm.
· Another important criterion in selecting media size is the
gap size between stirring arms and mill walls. Media size should be significantly
smaller than the gap size to prevent jamming.
|
